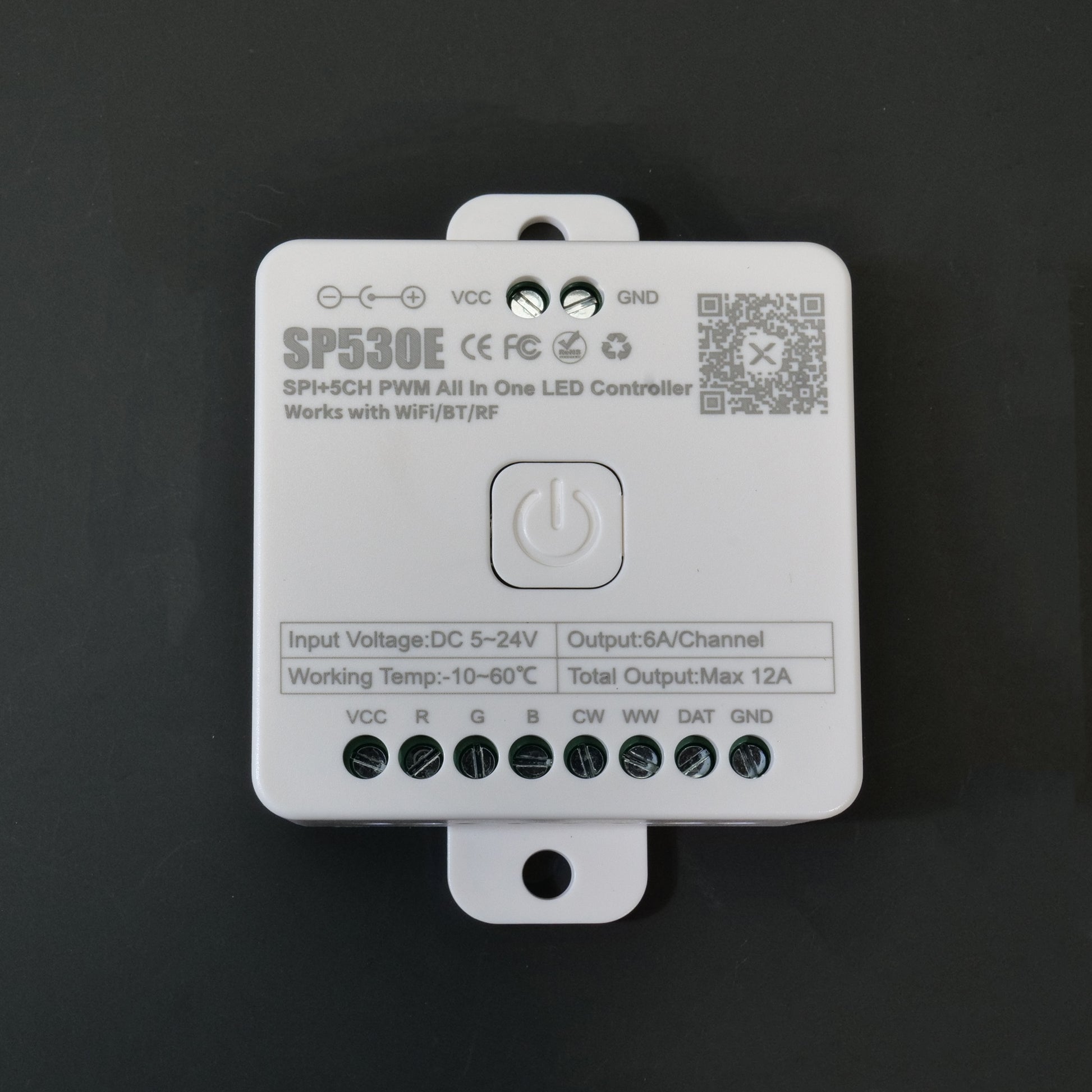

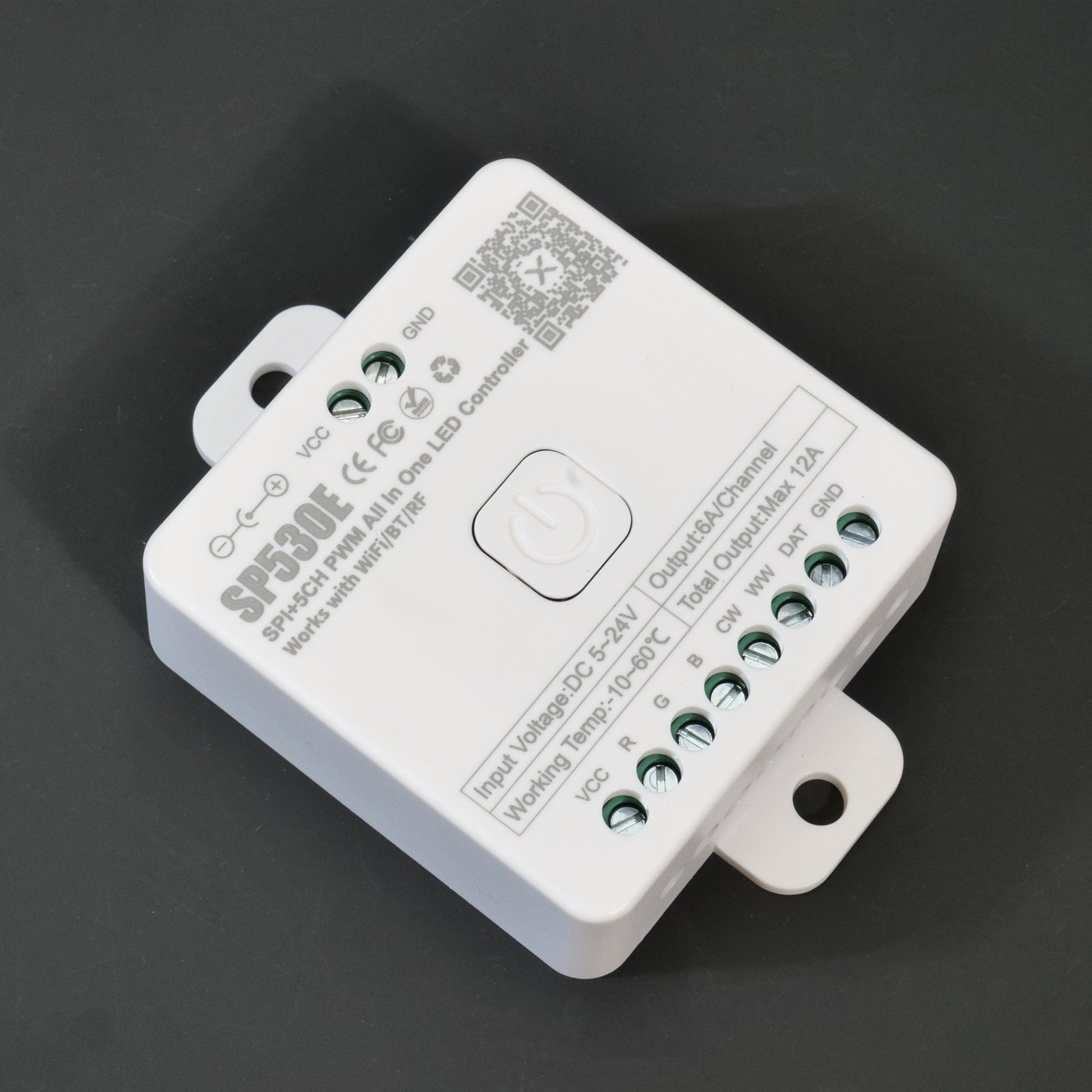

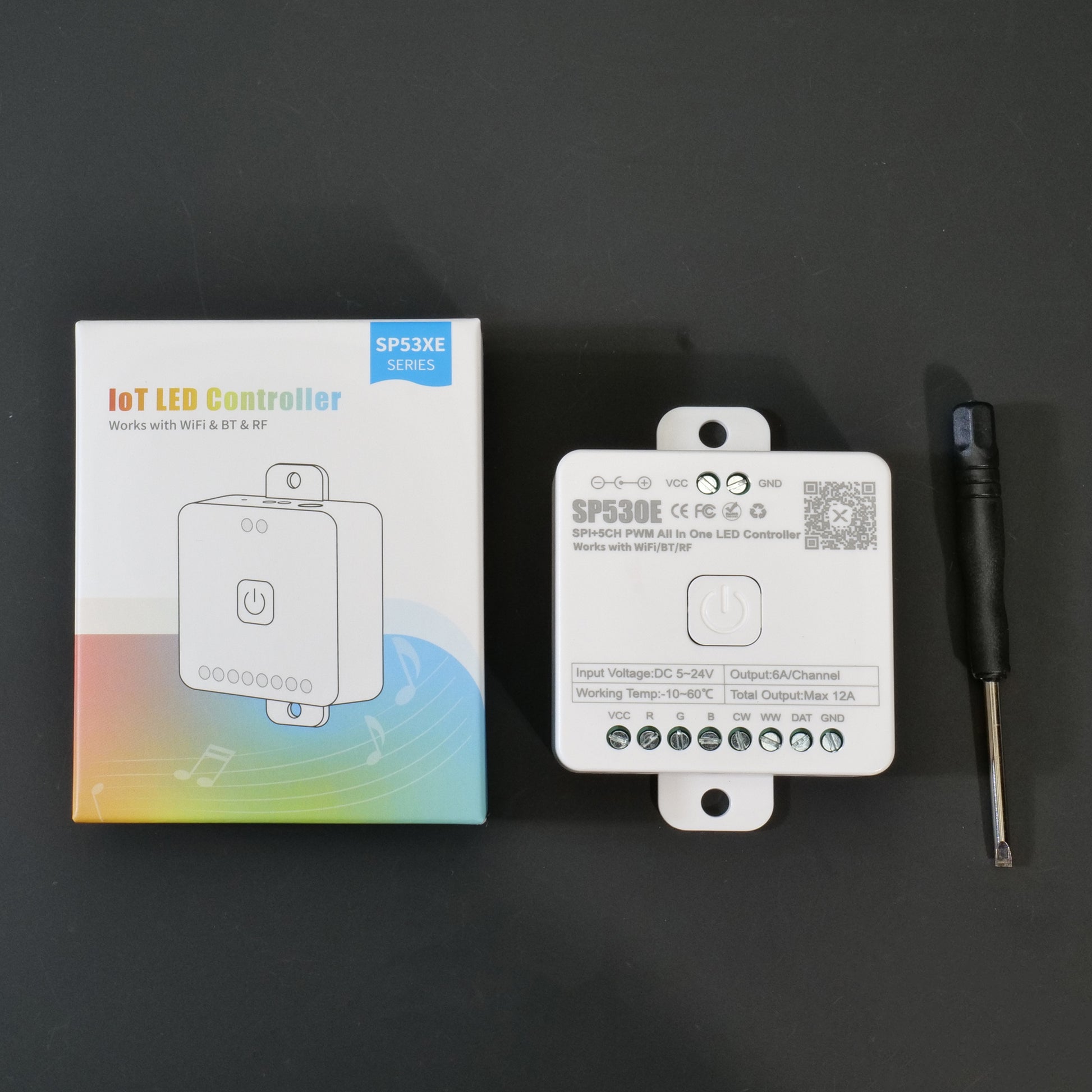

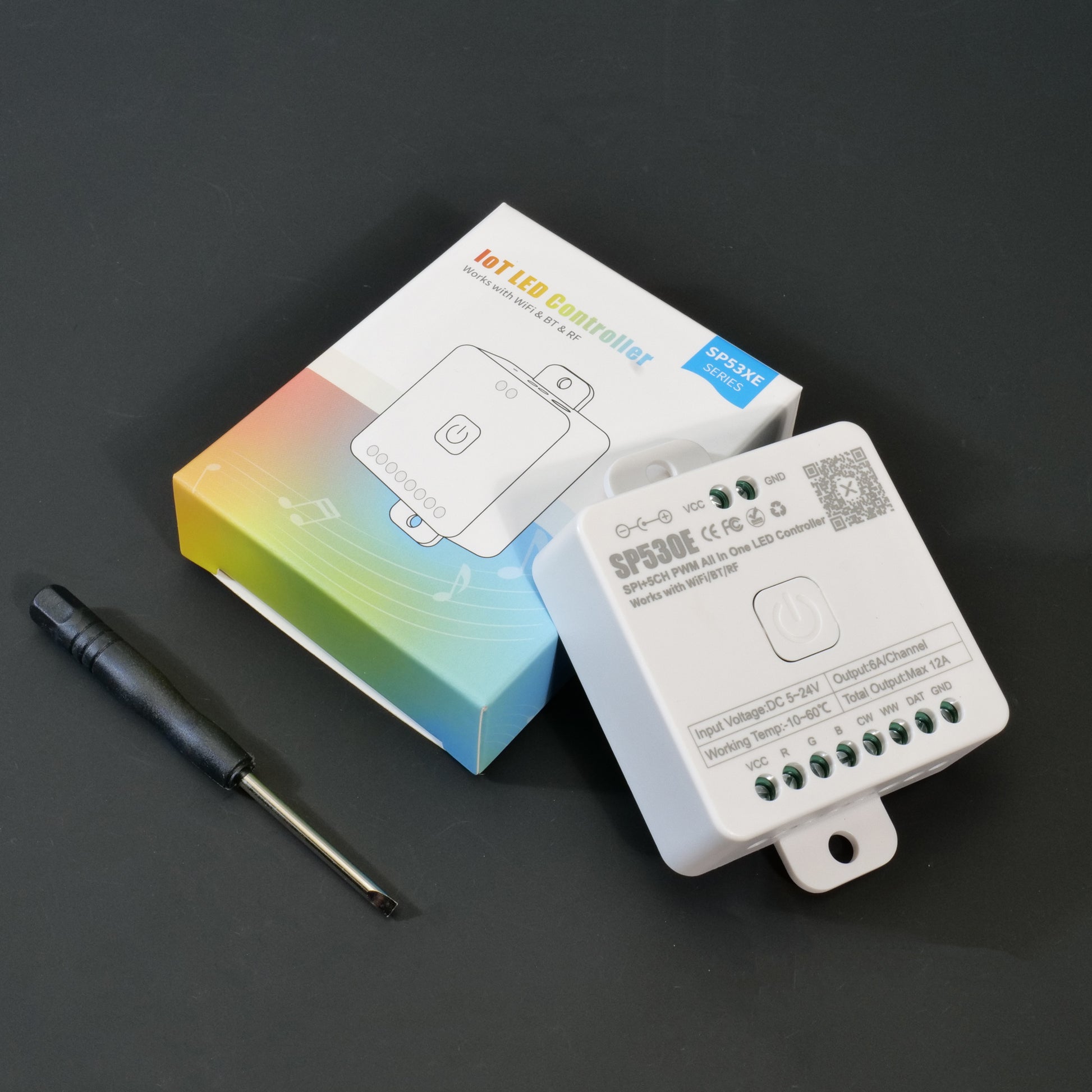

SP530E All In One LED Controller - Wifi (Alexa/Google Home Compatible) & BT, 5CH PWM SPI for Pixels LED Strip, 5V-24V Wide Voltage

SP530E All In One LED Controller - Wifi (Alexa/Google Home Compatible) & BT, 5CH PWM SPI for Pixels LED Strip, 5V-24V Wide Voltage

$30.99 USD
$30.99 USD
Sale Sold out

SP530E All-In-One IoT LED Controller: Smart Control for SPI & PWM LED Strips

The SP530E is a versatile IoT LED controller engineered to manage multiple LED types, featuring a dual-mode (2.4GHz WiFi + Bluetooth LE5.0) chip. It supports Bluetooth, WiFi, local network, or cloud connectivity via the "BanlanX" App, plus 2.4G RF remote control—delivering a seamless blend of smart and traditional lighting management.

1. Wide Compatibility: SPI (Addressable) & PWM (Non-Addressable) LEDs

The controller works with up to 12 LED types, eliminating the need for multiple controllers. It automatically adapts to your LED strip, whether it’s addressable (with IC) or basic dimmable (without IC).

Supported LED Categories

Type Details & Compatible Models
SPI (With IC) Addressable LED strips (pixel-level control). Supports IC chips like: WS2811/WS2812/WS2813/WS2814/WS2815, TM1804/TM1812/TM1829/TM1914A, UCS1903/UCS1909/UCS1912/UCS2903/UCS2909/UCS2912, GW6205, GS8206, GS8208.
PWM (Without IC) Basic LED strips (dimming/color adjustment). Supports models like: FCOB, SMD5050/3014/3528/5730/5630. Compatible with pin configurations: 2PIN (V+V-), 3PIN (CCT: V+CW+WW), 4PIN (RGB: V+R+G+B), 5PIN (RGBW: V+R+G+B+W), 6PIN (RGBCCT: V+R+G+B+CW+WW).

Quick Difference: SPI vs. PWM Strips

Feature SPI (With IC) PWM (Without IC)
Wiring 3PIN/4PIN (includes DATA wire) 2PIN-6PIN (V+ + color wires, no DATA)
Control Level Pixel-level (dynamic effects) Whole-strip (dimming/color temp)
Key Advantage Supports dream color/chasing effects Simple, cost-effective for basic use

2. Core Specifications

Parameter Details
Input Voltage DC5V–DC24V (matches your LED strip’s voltage; no fixed controller voltage)
Max Supported IC Quantity - DIM/CCT/RGB: 1200 ICs max
- RGBW: 450 ICs max
- RGBCCT: 300 ICs max
Control Methods "BanlanX" App (Bluetooth/WiFi), Alexa/Google Home (voice), 2.4G RF remote
Cloud Integration "BanlanX" Cloud (stable IoT connectivity for remote control)

3. Standout Features

① Multiple Control Options for Flexibility

  • Smart Voice Control: Works with Alexa and Google Home—use voice commands like “Alexa, turn on living room lights” or “Google, set lights to warm white” for hands-free operation.
  • App Control: Manage via the "BanlanX" App (iOS/Android) for real-time adjustments, effect customization, and remote access (e.g., control home lights while away).
  • 2.4G RF Remote: Portable touch remote for quick, direct control (ideal for users who prefer physical buttons).

② Advanced Music Sync Effects

Elevate ambiance with two unique music-driven modes, plus 3 audio capture methods:

  1. Multi-Segment LED Strip Effects: Split one LED strip into multiple segments—each segment can run different effects, use custom pixel counts, and sync to specific audio frequencies (low/mid/high).
  2. Matrix LED Spectrum Effects: Customize LED matrix size and wiring layout; adjust falling dots/sound columns (color palette, saturation, direction) for dynamic visualizers.
  3. Audio Capture Methods: Phone microphone (real-time ambient sound), player streaming (sync to phone music), or on-board microphone (no phone required).

③ Personalization & Reliability

  • Dynamic Settings: Customize on/off animations (e.g., fade, flash), set default power-on states (no re-adjustments after restart), and schedule timers (auto-on/off for convenience).
  • OTA Firmware Upgrades: Automatically update the controller via the App to access new features and optimize performance.
  • Playful Triggers: Set fun on/off triggers (e.g., tap the App to activate a color burst) for interactive use.

4. "BanlanX" App Guide

Requirement Details
Supported Devices iOS 10.0+ (iPhone/iPad) ; Android 4.4+ (smartphones/tablets)
Download Methods 1. Search “BanlanX” in the App Store (iOS) or Google Play (Android).
2. Scan the product’s QR code for direct installation.
App Core Functions - Control: Adjust brightness, color, and effects.
- Music: Select audio capture modes and customize spectrum effects.
- Settings: Manage timers, device names, and OTA updates.

5. Important Notes

  • Power Supply: A separate DC power supply (matching your LED strip’s voltage) is required (NOT included with the controller).
  • RF Remote: The 2.4G RF remote is sold separately (check product bundles for all-in-one packages).
  • WiFi Connection: Ensure your phone is on a 2.4GHz WiFi network (5GHz networks are not supported for initial pairing).

The SP530E combines smart connectivity, broad compatibility, and creative music effects—perfect for home decor, commercial spaces, or DIY lighting projects, delivering an intelligent, convenient, and personalized lighting experience.
